Here at the Kogan.com Engineering team, we care about developer experience: everytime an engineer makes any code changes, they have to go through the Edit-Compile-Run cycle.
Every day we go through this cycle hundreds of times, so any degradation of the build time would have a big impact on our teamās overall productivity.
In order to improve the build time, in this blog post, weāll look closely at the build process for the Android team and identify the areas we could improve. Letās go.
Analyze a gradle build
Before we continue, we need to clarify where we want to start optimizing our build. There are always clean builds and incremental builds. Incremental builds vary from case to case so we will start looking at the clean build scenario and hopefully any optimization going there would contribute to reducing the build time for the incremental builds.
Test machine
Dell XPS 15 9550
CPU: i7-6820HQ
Memory: 32G
JDK: OpenJDK 11.0.16.1
Build time measurement methodology
To measure the build time more accurately, we have to minimize other applicationsā like Android Studioās impact on the performance. To do that, we ran this command in the command line and left just the command line window open:
./gradlew clean assembleAuDebug --scan
Whenever we start a new experiment, we make sure no JVM is alive (to avoid the last experiment polluting the current one). To do this, we ran this command before each experiment:
./gradlew -stop
During each experiment, we ran the clean and build command 6 times consecutively, without stopping the Gradle daemon. This is to get a more accurate measurement due to JVMās warming up capability.
Initial result
We could see that the build time fractures a bit, however we can say for sure: it takes more than over 240 seconds (~4 minutes) for a clean build.
First analysis

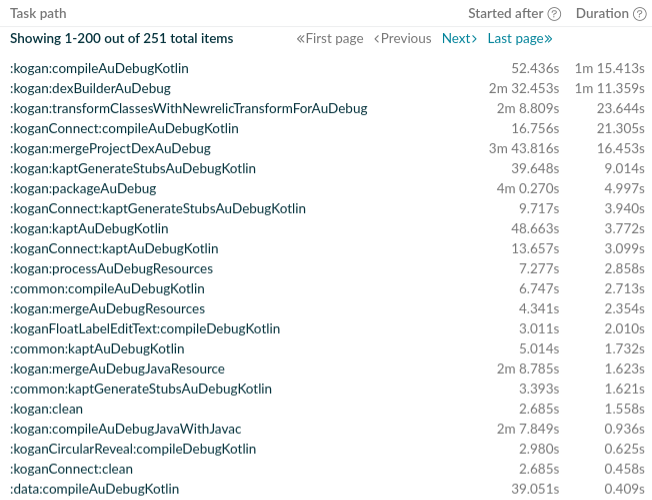

Letās start by taking a look at the build scan Gradle provides:
This table shows you the time each gradle task takes to finish. We can see clearly that most of the time was spent on compiling Kotlin code and dex - which are very standard Android processes.
While the standard processes are hard to optimize right away, we can look at something that isnāt standard. If you look carefully, you can see there is an outlier here: kogan:tranformClassesWithNewrelicTransformForAuDebug
It takes about 23s to finish, ouch, letās see if we can optimize it.
Experiment One: Newrelic
Newrelic is a product that monitors the application performance. We donāt think itās useful to have it turned on for debug builds. After looking around the official documentation, we found a way disable it for debug builds:
app/build.gradle
newrelic {
// do not instrument these build variants
variantExclusionList = ["debug"]Result:
RESULT:
Conclusion
Itās a huge improvement by simply disabling Newrelic for debug builds. Interestingly it also stabilizes the build time, barring the 5th trial. Nonetheless, itās such a simple solution that improves the build time by at least 25%! We could have stopped here but it seems like there are more low hanging fruits we could go for.
Weāll therefore enable this optimization for future experiments.
Experiment Two: Latest Kotlin
Kotlin is an evolving language. Every new version brings performance improvements. Letās see if we can improve any further by simply bumping up the Kotlin version. We bumped the version from 1.5.10 to 1.7.0.
Result
Conclusion
Even though updating Kotlin gave us only a slight advantage, weāll still keep the Kotlin update in our next experiments because we love to keep the latest tools available to us!
Experiment Three: Latest JDK
Contrary to common beliefs, Java has a rapidly evolving ecosystem. As of now, the latest long term supported JDK is 17. Letās see if Java fulfills its backward compatible promise and lets us build the project without any changes to the code.
Conclusion
The result is mostly promising, it gave us some edges on the 3rd, 4th and 6th trial. With the 6th trial it almost halved the time. Not bad at all.
Weāll keep using the JDK 17 for future experiments!
Experiment Four: KSP
Looking again into the latest build analysis. This analysis was taken from one build from the last experiment.
I love the whole section of KSP. Very informative and learnt quite a few things under the hood.
Itās clear that we have to look closer at Kotlin related tasks now.
You can see the familiar compilation and dex phrase across the tasks. If your eyes are sharp enough you can see the not-so-familiar kapt related tasks.
Kapt: annotation processing in Kotlin land
What is kapt? Well, in our opinion, out of all modules in the Kotlin eco-system, kapt must be the most hacky one in there: it was invented to run Java annotation processors on Kotlin code. If you are not familiar with annotation processing, itās a piece of code that runs in compile time, usually to generate new code into the compilation process. Itās widely used in libraries like Dagger, Room, etc.
In Java land, the annotation processors run inside the javac process. However, Kotlin has its own compiler: kotlinc. The Kotlin compiler could have implemented the annotation processing (JSR-269) from scratch, but in the end Jetbrains people chose not to reimplement the wheel. Instead, the Kotlin compiler would generate dumb Java classes (stubs) from the Kotlin files, then use javac to run annotation processors on these stubs. Jetbrain has published an article explaining how kapt works: https://blog.jetbrains.com/kotlin/2015/06/better-annotation-processing-supporting-stubs-in-kapt/.
It seems to us that these processes are pretty wasteful: even without reading into the details you would have guessed the amount of work the compiler has to do, given the size of the codebase.
Is there any alternative to kapt? Indeed there isā¦
Entering ksp: the modern symbol processor for Kotlin
It turns out Google has developed a new tool called KSP that hooks directly into the Kotlin compiling process. This native Kotlin solution allows the code generator to run more efficiently without going through the hoops of the Java annotation processors. Details can be found here: https://kotlinlang.org/docs/ksp-why-ksp.html.
While itās a sound solution, it comes with a major drawback: itās not compatible with the existing Java annotation processing libraries. The reason is obvious: itās a native Kotlin plugin that only handles Kotlin code. This drawback means that for every Java annotation processor library out there, they have to re-implement it in KSP. This official page lists the support status of commonly used libraries. The most famous libraries on the unsupported list as of today are probably Dagger and Hilt: the widely used dependency injection framework for Android. So if your project is using one of these two, you are out of luck, and may stop here.
Luckily for us, we donāt have any major roadblock to migrate to KSP. The frameworks/libraries that use annotation processors for our projects are:
ā Moshi codegen
ā Android databinding
Moshi codegen supports KSP so thereās no problem there. Now with data binding: it doesnāt support KSP and we donāt think it will ever do.
Android data binding: demon or a blessing?
When data binding was out, it was such a breath of fresh air: Android land has long suffered from the lack of a solution for binding UI. With databinding, everything binds automatically, lifecycles handled smoothly. However, we quickly discovered the drawbacks of this framework.
The ability to write full Java code in the XML is bad
As Android devs, we all learn about architectures like MVP, MVVM: one of the core ideas is to separate business/UI logic out of the View layer. Take MVVM as an example, you would have your UI logic in the ViewModel: when to show/hide a text, etc. Data binding is an excellent tool to reduce the boilerplate in this regard: you tell the View to bind to a property from the ViewModel then the data binding will update the view whenever the property value changes. It also works for the reverse: for any event from the View, you can instruct databinding to notify the ViewModel.
So far so good, until you learn that you can write the binding expression in full Java syntax, you start seeing code like this in the codebase:
<TextView
android:id="@+id/shown_price"
style="@style/BigPrice"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@{state.shownPrice}"
tools:text="$420.00"
android:visibility="@{state.shownPrice != null}"
app:layout_constraintTop_toBottomOf="@id/kf_logo"
app:layout_constraintStart_toStartOf="parent" />
It looks so innocent on the surface. But the simple line of
android:visibility="@{state.shownPrice != null}"
leaks UI logic or even business logic into the view layer: the view now decides when to show itself. What if we would like to only show the price if the price is 0, not null? That surely is a business decision and it belongs in the ViewModel. The better version is to create another property in the state called shownPriceVisibility and bind it directly here, then have the ViewModel to control this property.
One may argue that itās not databindingās fault to provide the ability to write full expression, at the end of the day, itās just a tool, the users of the tool should take their own responsibility. Itās true to some extent, however, data binding provides such an easy way to manipulate the View, youāre more likely to write the seemingly small but harmful things like this. One thing we learn from the past is that, in the long run, a tool that makes it hard to misuse is miles better than the tool that does everything easily, including shooting yourself in the foot.[1]
Spotty IDE support
Have you ever had the problem that Android Studio tells you all the code referencing the XML binding is wrong but when you compile the project nothing is wrong? Then it comes with rebuilding, restarting the IDE, clearing the IDE cache and enduring the dreadful wait just to find out it doesnāt work, then all of sudden it works again. You are not alone. The team at Google and Jetbrains worked incredibly hard to fix this and you seldom see them today. Itās no oneās fault this doesnāt work seamlessly because the code generation here is so complicated: essentially you try to reference code that hasnāt been generated yet.
With databindingās support for customized binding, itās difficult to reason about the code: you would need to jump between Kotlin and XML files to find out where a particular binding method is written.
At last, it uses annotation processing
Needless to say, with Kotlin as our primary programming language, the use of any annotation processing library is going to slow us down.
Remove data binding
We had explained why we didnāt like data binding, in the end, our team decided to go ahead with removing data binding from our codebase. However, thereās one part of data binding we want to keep: view binding.
View binding to the rescue
If you havenāt used it before, view binding generates holder classes in Java for each XML, they expose the views as properties in the holder classes that allow you to access them directly from code. View binding used to be part of the data binding, but engineers at Google have extracted it out as a separate Gradle task. If you only enable view binding, it doesnāt involve the annotation processing as it merely transforms XML to Java, hence no need to run within the Java compilation process. This dedicated gradle task enables gradle to optimize the build process: in theory gradle can look at the input and output and figure out what has changed and what can be cached. This is not easily doable with annotation processing.
Anyway, with the help of view binding, we can transform the existing data binding XML from:
<TextView
android:id="@+id/product_name_tv"
style="?textAppearanceTitleSmall"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_marginEnd="16dp"
android:text="@{viewModel.title}"
app:layout_constraintEnd_toStartOf="@+id/chevron"
app:layout_constraintStart_toEndOf="@id/iv_item_image"
app:layout_constraintTop_toTopOf="@id/iv_item_image" />
To:
XML:
<TextView
android:id="@+id/product_name_tv"
style="?textAppearanceTitleSmall"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_marginEnd="16dp"
app:layout_constraintEnd_toStartOf="@+id/chevron"
app:layout_constraintStart_toEndOf="@id/iv_item_image"
app:layout_constraintTop_toTopOf="@id/iv_item_image" />
Kotlin:
val binding = ProductItemViewBinding.inflate(inflater, parent, false)
viewModel.title.observe(lifecycleOwner) { title ->
binding.productNameTv.text = title
}
Itās a bit more code to write but itās easy to see what is going on there than the magical binding expression.
Byproduct: replacing the deprecated Kotlin Android Extension
When we were replacing data binding with view binding, we also got the chance to remove the Kotlin synthetics from Kotlin Android Extension plugin. This plugin adds extension methods to Activity, Fragments and Views to help you eliminate the calls to findViewById, itās a plausible concept at the first glance, then you realize what it does under the hood is a dirty hack at best in regards to Androidās lifecycle, thereās little surprise it got deprecated over the years. Unfortunately our project made heavy use of it. With the chance to use view binding, we manage to remove all them.
You can refer to the official documentation to find out how to do it: https://developer.android.com/topic/libraries/view-binding/migration.
Result
After removing data binding, we are able to migrate our code to use KSP instead. With kapt gone, Kotlin Android Extension gone and ksp enabled, we did another measurement:
Conclusion
We can see that the build time has been reduced reliably. It stabilized at around 100s, equating to 1 min 40 seconds, much better than the baseline result at around 3-4mins.
Finallyā¦
As shown in the graph and our experiment results, we could see these measures contribute greatly to the outcome:
ā Disable newrelic plugin
ā Update to latest JDK
ā Replace KAPT with KSP
With these efforts, we have reduced the full build time from 4-6 minutes to 1-2 minutes! One thing missing in this article is that we didnāt get to measure the improvement to the incremental build time. Itās very difficult to quantify the improvement as there are a lot of variants in incremental build scenarios. However, since the overall performance has improved, we expect a similar ratio of improvement applies to the incremental build.
Thatās all for this blog post and we would be happy to hear from you too about ways of getting your build time down.
